OBD logger / CAN bridge

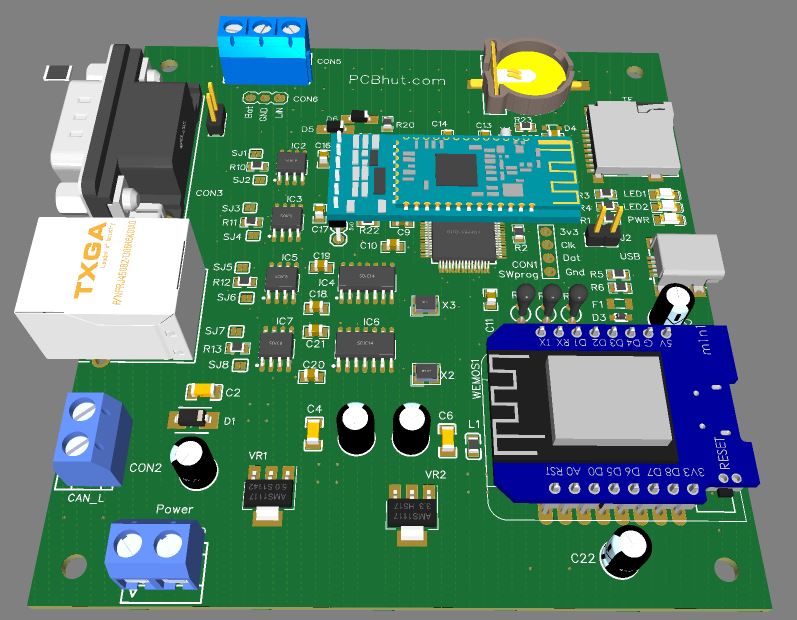

  • Off line OBD logger based on STM32F105RBT6 for fast data aqusition. Features 4 CAN and 1 LIN buses. 2x 1MB  and 2x up to 8Mb buses. Headers for HB-06 bluetooth and ESP01 or WeMOS D1 modules provide WiFi connections Your application firmware will allow data logging into SD card



    Features

    o     Powerfull STM3232F105 microcontroller based design.
    o     Dual  5v 1A and 3.3V 1A voltage regulators
    o
         Power and Status LED indicators
    o     Mini SD socket for local logs, no need to computer

    o     Battery backup for controller memory and RTC

    o     HC-05 Bluetooth communication header
    o     ESP8266-01 and WeMOS D1 Mini header for WiFi communication
    o     4 CAN buses
    o        2 CAN1/2 drivers by onboard controllers  1MB
    o        2 CAN3/4  via MCP2518FD CAN controllers fast CAN up to 8MB

    o        Single Wire (GM / ) CAN shared with CAN4 tranceiver

    o        MCP2562 tranceivers on CAN3/4
    o     LIN bus
    o     DB9 connector with CAN1 and LIN buses
    o     RJ45 for can bus only
    o     2 pin screw terminal for CAN1
    o     3 pin screw terminal for LIN bus
    o     Power applied through DB9, screw terminal or USB port
    o      CAN v2.0B up to 1Mb/s data rates
    o    Small board size  94mm x 99mm  (3.7in x 3.9in)





      Documents

         Schematic
         PCB layout files
         Gerber Files
         Bill of materials
         STM32F105RBT6 Datasheet
         MCP2515 Datasheet
         MCP2518 Datasheet
         MCP2551 Datasheet
         MCP2562 Datasheet
         SN65HVD23x Datasheet
         TCAN332D
         MCP2004 LIN Datasheet
         OBD-II Parameters ID's
         Arduino MCP2515 CAN-BUS library








      Termination Resistor
      there is provision for termination for each of the CAN buses where 2 sets of solder joints per bus provide a way of adding or removing 120ohn resistor from the bus.



      OBDII cables
      There are numerous different pinouts for the DB9 to OBDII cable. We had made the DB9 pinout follow most common wiring for OBDII cables currently being sold. However we strongly encourage that you check your cable to match the wiring matches the board.

      DB9 connector
      The DB connector only has signals for CAN1 and LIN buses and follows standard wiring scheme

      RJ45 connector
      As it only has 8 pins, only the 4 CAN buses are wired into it and follow the RJ45 connector pinout below


      To make your own cable please follow the below pinout.




      Signal Description OBDII   DB9  (female)
      not used 2 7
      Chassis Ground 4 2
      Signal Ground  5 1
      CAN High J-2284 6 3
      not used 7 4
      not used 10 6
      CAN Low J-2284 14 5
      ISO 9141-2 L Line  15 8
      Battery Power  16 9








      Signal Description

      RJ45 pin

      CAN1 High 1
      CAN1 Low 2
      CAN2 High 3
      CAN2 Low 6
      CAN3 High 5
      CAN3 Low 4
      CAN4 High 7
      CAN4 Low 8
