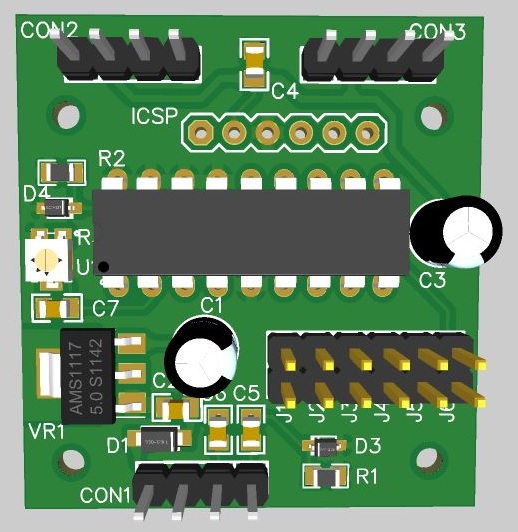

• Here we have another version of VU meter based on original design from s-o.webnode.cz . In this configuration we used some SMD components to make the PCB small and possibly more versatile, the LED had been removed from the board and replaced with a string of ws2812 RGB 16 per channel on a pluggable boards.

  There are 2 versions of the control boards, one with DIP package for the MCU and one with SMD version of the Microcontroller.
  Also there are 2 display boards one os 5 inches long and other is 4.3. However they can be replaced with regular ws2812 strings.






  Features

     Microcontroller sampling of audio
     Log display
     Linear display
     Dot / Bar mode
     Waterfall fall
     Peak hold



  Documents

     Schematic
     PCB layout files   (easyEDA)
     Gerber Files
     Bill of Materials
     PIC16F1847-I/P
     Firmware
