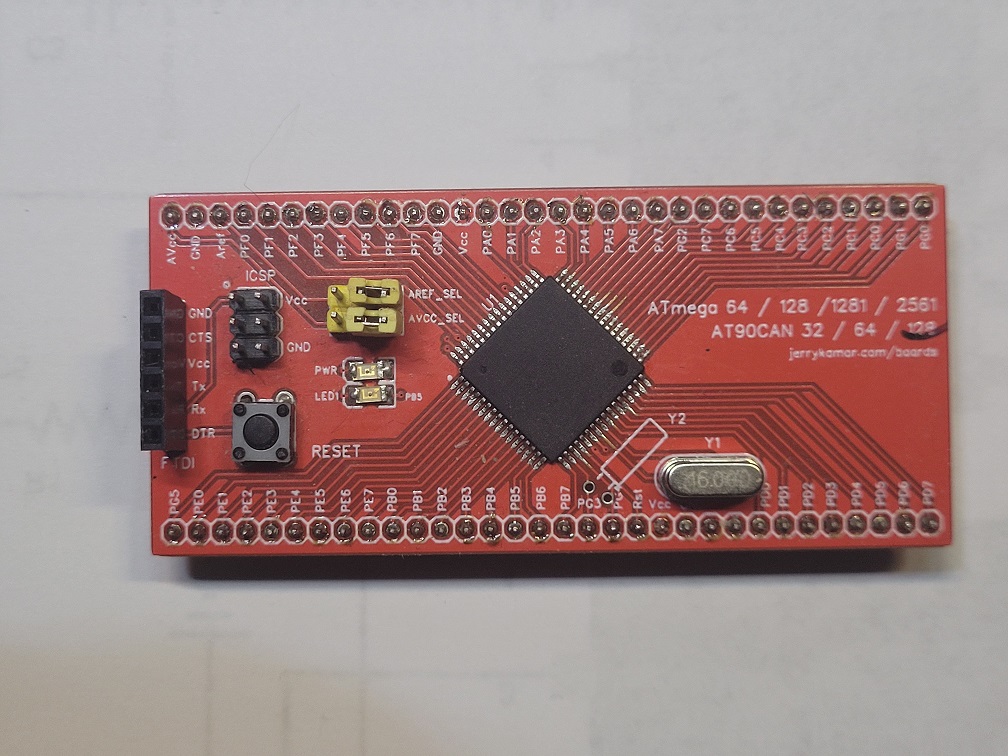

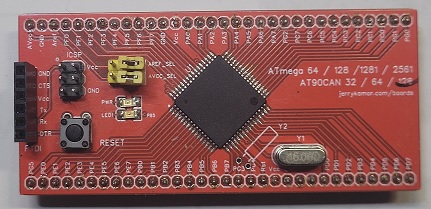

ATmega TQFP64 break-out board




  • This is our multiprocessor board for 64pin QFP64 to DIP 64 compatible with following processors:
    ATmeaga64
    ATmeaga128
    ATmeaga1281
    ATmeaga2561
    AT90CAN32

    AT90CAN64

    AT90CAN128

    Refer to processor manuals for specific peripheral assignment to particular ports/pins.
    Bread board friendly with dual row headers.
    On board connectors for ICD and UART0 programming and 2 jumpers for Vref and AVcc selection
    Main crystal and optional 32khz for timer




    Versions of the boards are available on our Tindie




    Features

         1 P1  4 color port   MOSFET switched to ground
         1 P4  3 color port   MOSFET switched to ground
         2 ws2812 ports shared with P4
         IR receiver
         Microphone preamp for sound reactive
         3A 5v regulator  through DC power jack
         Micro USB connector for power  limited by USB spec
         Programming port compatible with auto reset  ( see USB-TTL adapter)
